Wood shavings packaging line

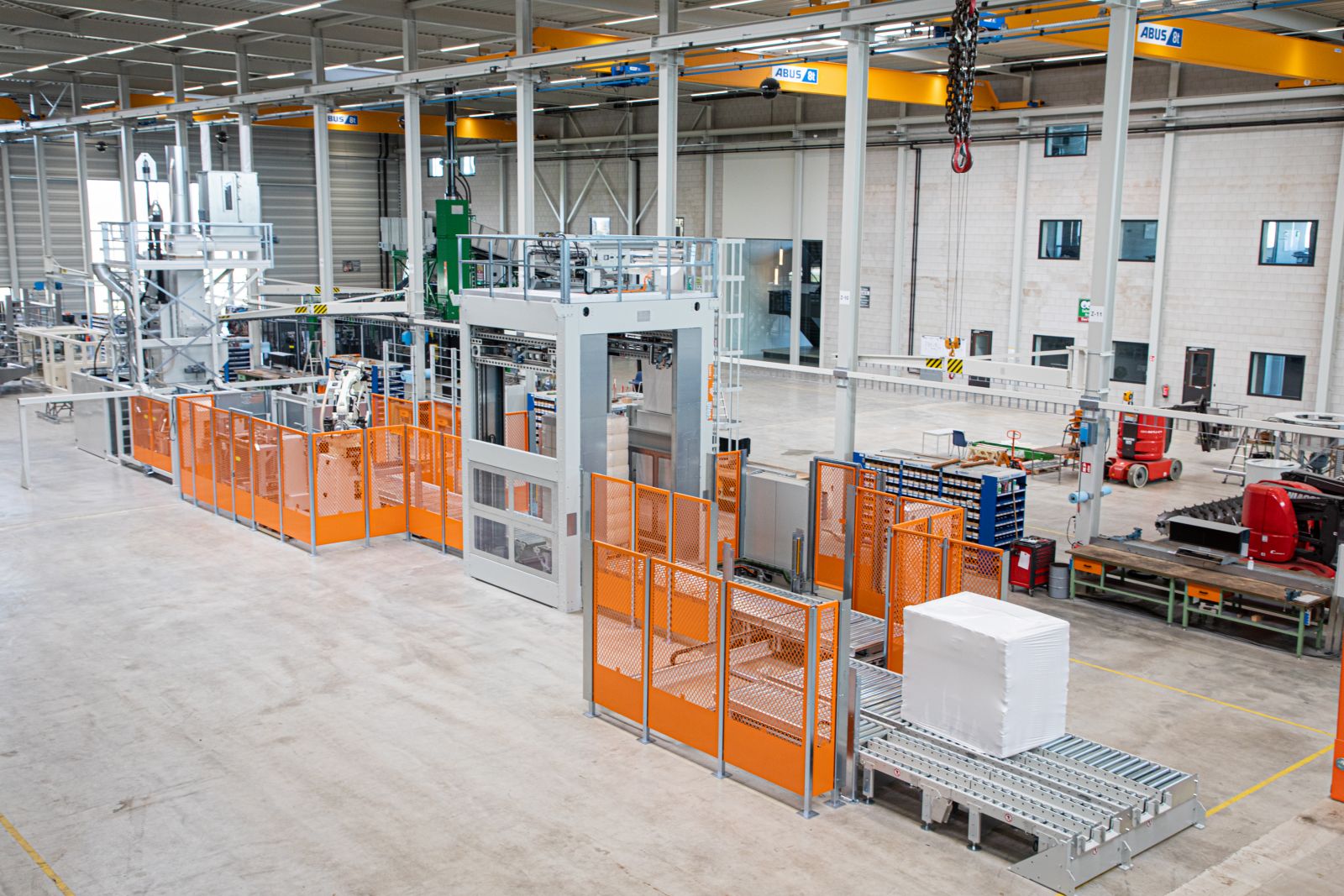

Complete wood shavings packaging line delivered turnkey.

Germany, March 2021

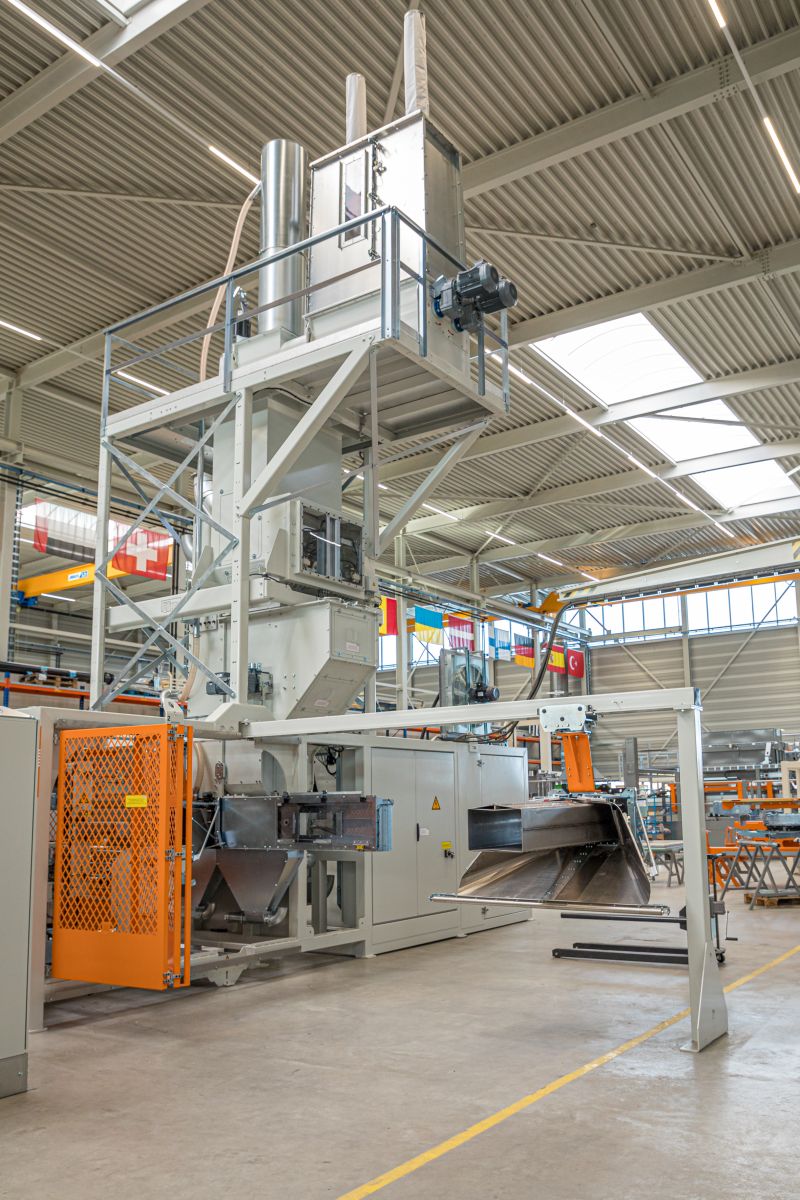

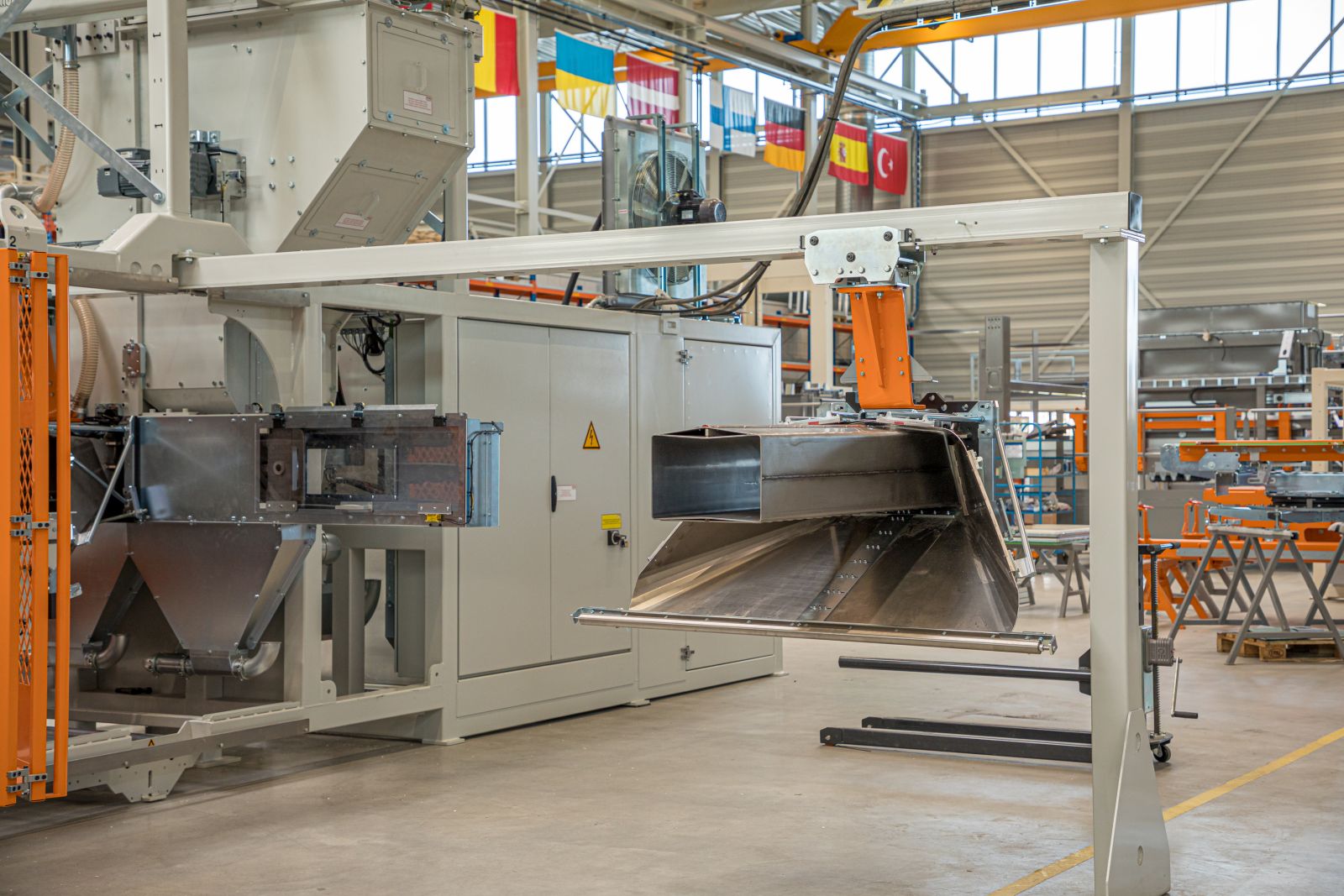

The baler is equipped with a quick-exchange system to change tube and shoulder, in order to be able to make different bale sizes with the same baler. Spare tube and shoulder hang in an easy-to-use rail, so that tube exchange is possible without a lift truck or other aids, which also makes the exchange easier. The baler is also equipped with a double vertical ram, so that bales of the same length can be made with and without length compression with the same baler. Longitudinal comppression is not desirable for some products. This is a requirement for other products. But they still want the logistical optimum bale size. Hence this concept, with both pressing principles possible, can be done with one and the same baler.

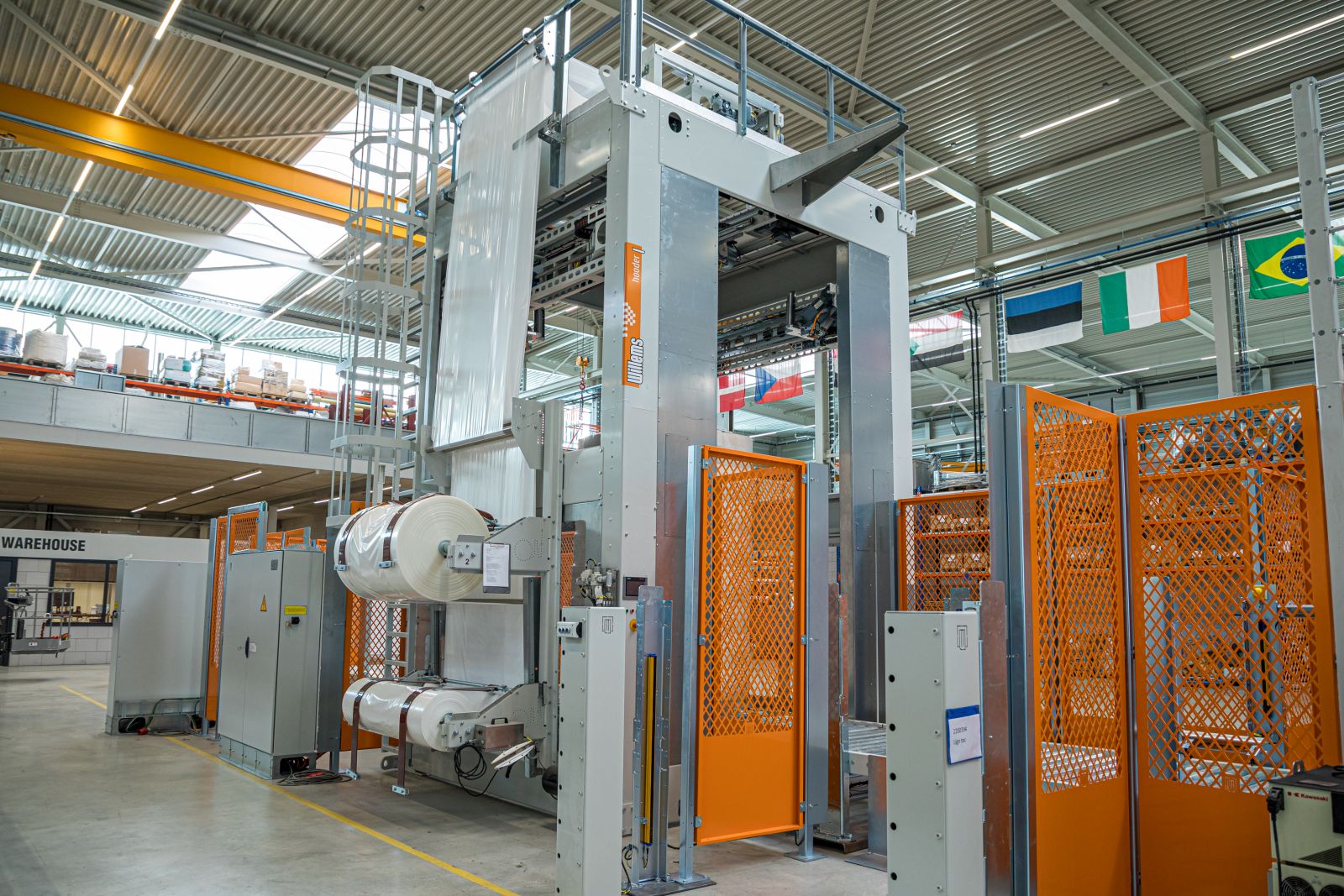

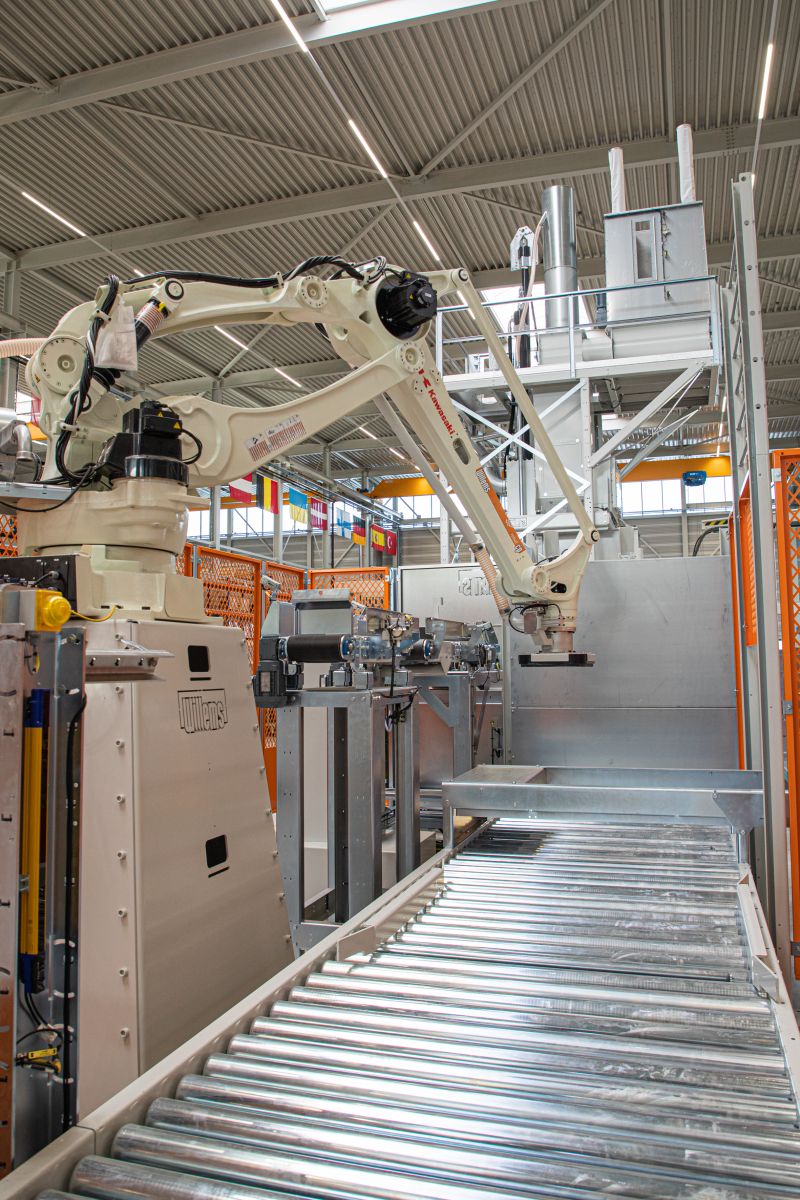

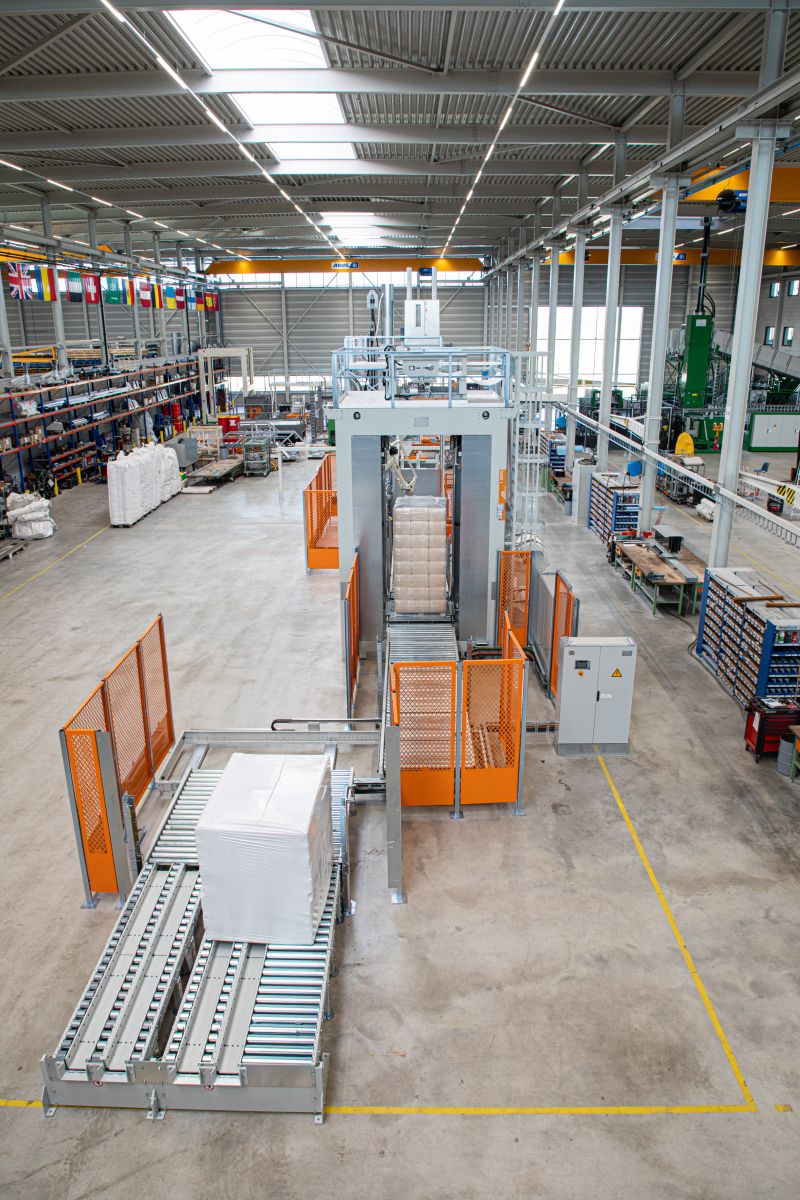

Fully equipped with a robot stacker, with automatic sheet dispenser and bale tipper. A fully automatic stretch wrapping machine has been added to protect the stacked bales against wind and weather. And the end of the line consists of roller conveyor collection system. On this, the different pallet sizes are formed next to, or behind each other, so that a forklift truck may be able to take several pallets at the same time. To keep forklift traffic to a minimum.
